Seawall Toolbox for Coastal Defense Planning

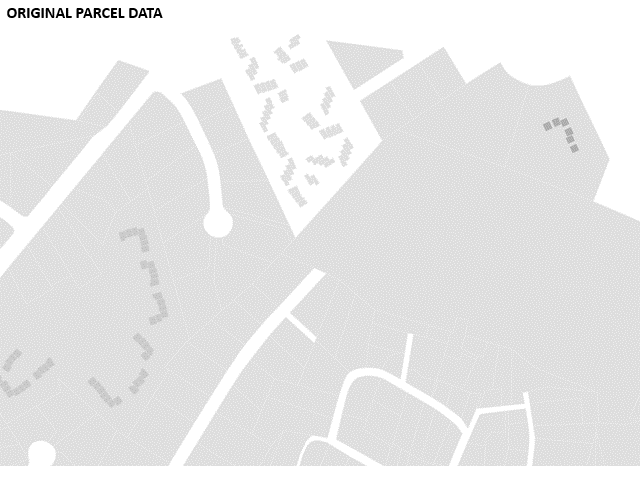

Clean input dataset

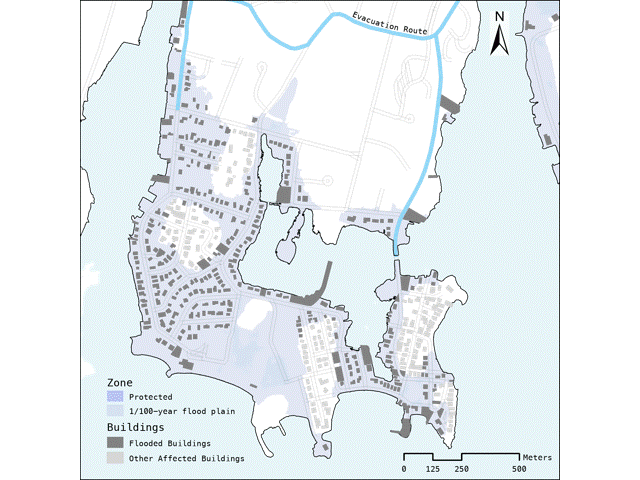

Create zones of shared risks
Conduct economic assessment

Reports (pdf document and images) can be created subsequently using this R markdown project. Just make sure you copy the outputs into the data folder and change/add new parameters in the report.rmd file.

For advanced editing, you find the instructions here.

Getting started

To use the Seawall Toolbox, follow these 4 simple steps:

1. Software requirements: Make sure you use a Windows machine with ArcGIS Pro installed. Also, it is recommended that you use Python 3, and have the following modules installed: `pandas`, `numpy`.
2.a. Install the Seawall Tolbox library from the Command Prompt (as Administrator):
"C:\Program Files\ArcGIS\Pro\bin\Python\envs\arcgispro-py3\python" -m pip install -i https://test.pypi.org/simple/ swtbx-rajaoberison==1.0.8
2.b. Download the toolbox and the sample dataset from here.
3. Add the folder containing the downloaded `.tbx` file as a folder connection to ArcGIS. You can do that by either using the `Insert` tab

or right-clicking `Folders` in the `Catalog` pane
4.Once the Seawall Toolbox is added, you can open it and choose which tool to run.

Folder structure of the outputs

Please make sure that you use the same working directory for each of the 3 tools and that you run them in the order:
Clean Raw Data --> Create ZSR --> Perform CBA
